UVC LED Water Disinfection Reactors
HERGY develops UV-C LED water reactor solutions for homes, offices, and commercial water systems. Our products help water treatment brands add UV disinfection to their systems. In addition, the reactors are compact, mercury-free, and easy to integrate.
NSF/ANSI 55 Class B Certified Reactors
HERGY offers NSF/ANSI 55 Class B certified reactors for POU and POE water systems. Our certified models cover flow rates from 2 to 50 LPM (0.53–13.2 GPM).
For example, the UD6 delivers 2 LPM with 3 W of power. The UD7 series offers 2.8 LPM and 6 LPM options. Meanwhile, the UE1 delivers 50 LPM with 35 W of power.
As a result, customers can select a certified reactor based on flow rate and system needs.
Compact and Efficient UV-C LED Water Reactor Design
A UV-C LED water reactor uses mercury-free light to treat water. It also supports instant-on operation without a warm-up period. Unlike traditional UV lamps, they allow flexible control without a warm-up period.
In addition, HERGY uses patented reactor technology to support water disinfection. Our team also focuses on optical design, heat control, and electronics.
These design features help customers integrate UV-C LED water reactors into compact treatment systems.
POU and POE Water Treatment Applications
Our POU reactors support water filters, dispensers, and under-sink systems. In contrast, POE reactors serve larger water treatment needs in homes and commercial buildings.
HERGY also provides other reactor models for a range of applications. However, NSF/ANSI 55 Class B certification applies only to the specific certified models.
OEM/ODM Water Disinfection Solutions
HERGY supports OEM and ODM projects for water treatment brands. In addition to standard products, we offer design support and system integration services.
Therefore, customers can choose from our existing products or discuss custom designs with our team.
Explore the UV-C LED water reactors below. Alternatively, contact HERGY to find a solution for your next water treatment project.
Explore our UV-C LED water disinfection products to compare available solutions. For certification details, visit the NSF Certified Products Listings. You can also contact HERGY to discuss your next OEM/ODM project.
Point of Use
UD6
| Design flow rate | 2 LPM |
| Design flow rate | 0.53 GPM |
| UV dose (UVT 98%) | > 16 mJ/cm2 |
| Power consumption | 3 W |
| Water connection | 1/4″ quick fitting |
| Input voltage | 12 – 24 Vdc |
| Max pressure | 125 psi |
| Operating water temperature | 0 – 40 oC |
| Operating ambient temperature | 0 – 40 oC |
UD7
| Design flow rate | 2.8 LPM | 6 LPM |
| Design flow rate | 0.75 GPM | 1.59 GPM |
| UV dose (UVT 98%) | > 16 mJ/cm2 | > 16 mJ/cm2 |
| Power consumption | 3 W | 7 W |
| Water connection | 3/8″ quick fitting | 3/8″ quick fitting |
| Input voltage | 12 – 24 Vdc | 12 -24 Vdc |
| Max pressure | 100 psi | 100 psi |
| Operating water temperature | 0 – 40 oC | 0 – 40 oC |
| Operating ambient temperature | 0 – 40 oC | 0 – 40 oC |
UD3
| Design flow rate | 8 LPM |
| Design flow rate | 2.11 GPM |
| UV dose (UVT 98%) | > 22 mJ/cm2 |
| Power consumption | 14 W |
| Water connection | 3/8″ quick fitting |
| Input voltage | 12 – 24 Vdc |
| Max pressure | 100 psi |
| Operating water temperature | 0 – 40 oC |
| Operating ambient temperature | 0 – 40 oC |
UD4
| Design flow rate | 16 LPM |
| Design flow rate | 4.23 GPM |
| UV dose (UVT 98%) | > 16 mJ/cm2 |
| Power consumption | 17 W |
| Water connection | 1/2″ M-BSPP |
| Input voltage | 12 – 24 Vdc |
| Max pressure | 100 psi |
| Operating water temperature | 0 – 40 oC |
| Operating ambient temperature | 0 – 40 oC |
Point of Entry

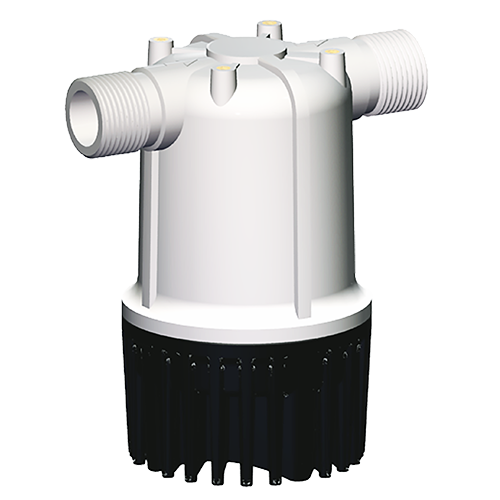

UE3
| Design flow rate | 26.5 LPM |
| Design flow rate | 7.0 GPM |
| UV dose (UVT 98%) | > 16 mJ/cm2 |
| Power consumption | 25 W |
| Water connection | 1″ M-BSPP |
| Input voltage | 24 Vdc |
| Max pressure | 100 psi |
| Operating water temperature | 0 – 40 oC |
| Operating ambient temperature | 0 – 40 oC |

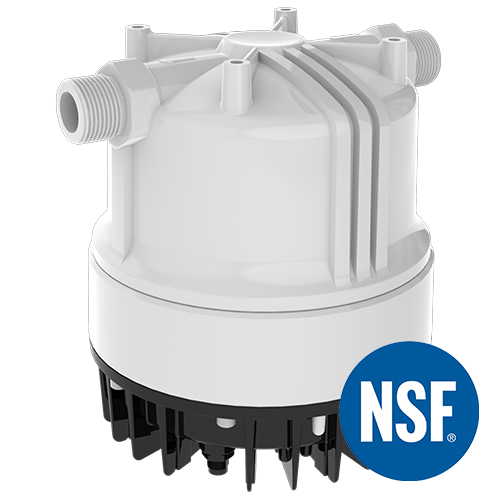

UE1
| Design flow rate | 50 LPM |
| Design flow rate | 13.2 GPM |
| UV dose (UVT 98%) | > 16 mJ/cm2 |
| Power consumption | 35 W |
| Water connection | 1″ M-BSPP |
| Input voltage | 24 Vdc |
| Max pressure | 100 psi |
| Operating water temperature | 0 – 40 oC |
| Operating ambient temperature | 0 – 40 oC |
UVC LED Modules
UVC LED Modules for Antimicrobial Protection
UC3
Hergy UVC LED module has compact size provides UVC radiant flux for antimicrobial protection. It can clean your equipment and improve the heat exchange efficiency. It is easy to install in a compact device and connect in series, such as cooler tank, air conditioner, air purifier, dehumidifier…etc.
- Compact size
- Conformal coating for damp-proof
- Osram UVC LED
- Lifetime up to 44,000 hours
- US invention patent
